FRESH REED PETALS EQUALS MAXIMUM PERFORMANCE
Designed for 2000 yamaha VMax 700, these Boyesen reeds help improve intake response, airflow efficiency, and throttle control for a stronger, more responsive ride.
Maximum Power is acheived by keeping your Boyesen Rage Cage equipped with fresh reed petals. Boyesen Rage Cage Replacement Reed Petals are one of the critical aspects of why the Rage Cage works so well. In order to keep your Boyesen Rage Cage performing at peak capacity you will need to change the reed petals at least 2 times per season depending on how much and how hard you ride. Boyesen Rage Cage Replacement Reed Petals feature a carbon-fiber top petal that has excellent response characteristics providing improved acceleration and stronger throttle response and are designed to operate specifically with the Rage Cage Reed air intake system. Boyesen engineers craft and hand tension every Rage Cage Replacement Reed Petal set to work optimally with each respective parent Rage Cage Reed assembly to create the performance advantage that the Rage Cage is known to produce.
Keep your Rage Cage optimized by inspecting and changing it’s reed petals frequently. The result… superior efficiency, peak horsepower gains, and acceleration for YOUR specific model machine. Each Boyesen Rage Cage is unique - tailor made to that model, year and displacement. Please double check our cross reference information to ensure that you order the correct Rage Cage Replacement Reed Petals for the proper Rage Cage in your machine.


MS PLUS FLOW OPTIMIZATION

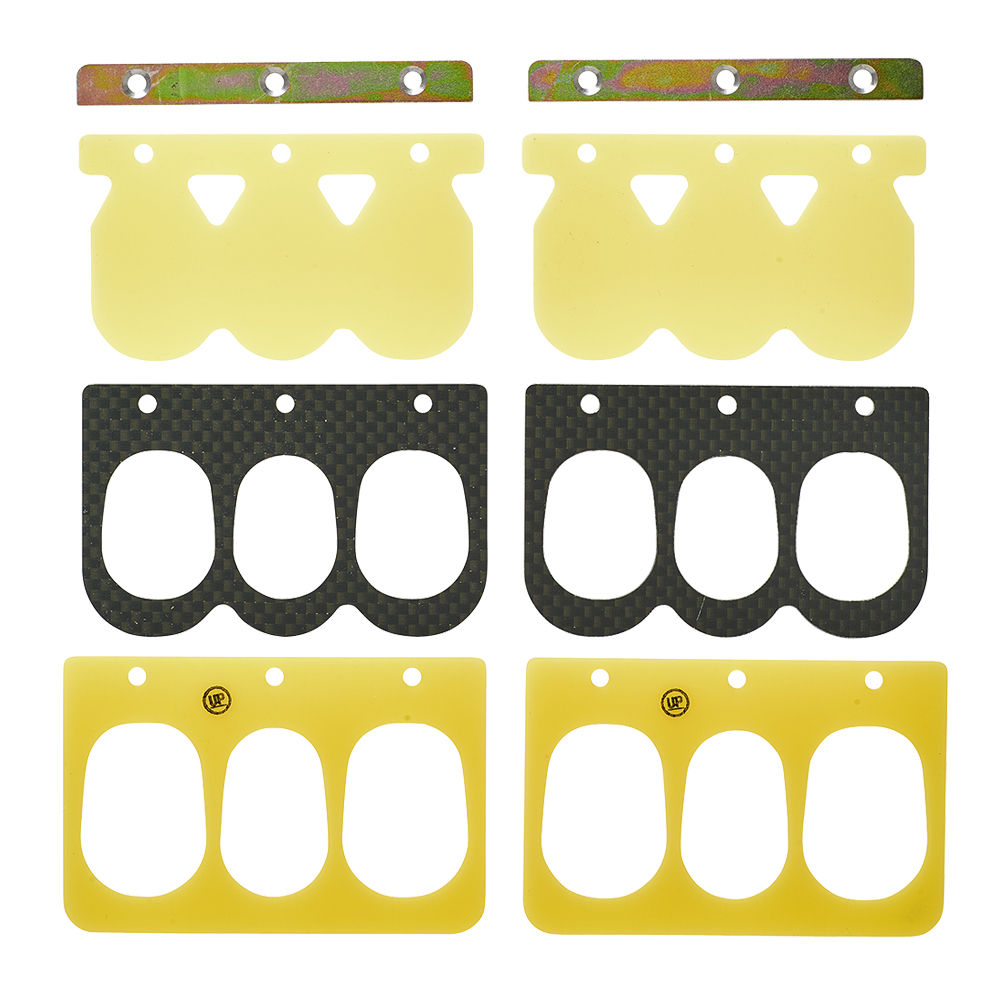

The patented multi-stage design incorporates a specially shaped top reed petal and a ported bottom reed petal. The top petal is lightweight and resilient for crisp throttle response at partial throttle or low RPM. The stiffer, bottom petal is ported to provide maximum flow and horsepower at higher RPM. By using a multiple reed petal stack, it is possible to acheive peak horsepower, more torque, improved stall resistance and greater overall reed durability.
FREE REVING POWER
The dual-stage design allows you to replace your stock reed stop with a Rev-Plate which permits the reeds to open freely and function efficiently. This results in a free reving, yet extremely smooth power delivery with an improved connection between your hand, the rear wheel and the terrain.part number cross reference
| boyesen part number | serial number (start) | serial number (end) | UPC number | eu hts number | Southern number |
|---|---|---|---|---|---|
| PRO-176 | 804429009084 | 84099100900 | |||
| parts unlimited | parts europe | tucker rocky | wpc | apico int | |
| bihr | dist 1 | dist 2 | dist 3 | dist 4 | |
Applications
| Machine type | make | model | year range | cc | FUEL SYSTEM | CYLINDERS |
|---|---|---|---|---|---|---|
| SNOWMOBILE | yamaha | Mountain Max 600 | 2000-2002 | 600 | ||
| SNOWMOBILE | yamaha | Mountain Max 600 (twin) | 1997-1999 | 600 | ||
| SNOWMOBILE | yamaha | Mountain Max 700 | 1997-2003 | 700 | ||
| SNOWMOBILE | yamaha | SRX 600 | 1998-1999 | 600 | ||
| SNOWMOBILE | yamaha | SX 500R | 2000-2001 | 500 | ||
| SNOWMOBILE | yamaha | SX 600R (triple) | 2000-2003 | 600 | ||
| SNOWMOBILE | yamaha | SX 700R | 2000-2001 | 700 | ||
| SNOWMOBILE | yamaha | SX Venom | 2004-2006 | 600 | ||
| SNOWMOBILE | yamaha | Venture 600 | 1997-1998 | 600 | ||
| SNOWMOBILE | yamaha | Venture 600 (triple) | 1999-2003 | 600 | ||
| SNOWMOBILE | yamaha | Venture 600 | 2004-2006 | 600 | ||
| SNOWMOBILE | yamaha | Venture 700 | 1998-2002 | 700 | ||
| SNOWMOBILE | yamaha | VMax 600 (twin) | 1997-1999 | 600 | ||
| SNOWMOBILE | yamaha | VMax 600 (triple) | 1999-2001 | 600 | ||
| SNOWMOBILE | yamaha | VMax 600ER (triple) | 2002-2003 | 600 | ||
| SNOWMOBILE | yamaha | VMax 700 | 1997-2000 | 700 | ||
| SNOWMOBILE | yamaha | VMax 700ER | 2002-2002 | 700 |
extended fitment
Yamaha VMax 600ER 02-03, Yamaha SX 500R 00-01, Yamaha VMax 600 97-99, Yamaha Venture 600 97-98, Yamaha VMax 600 99-01, Yamaha Mountain Max 600 00-02, Yamaha SX 600R 00-03, Yamaha SRX 600 98-99, Yamaha SX Venom 04-06, Yamaha Venture 600 99-03, Yamaha Venture 600 04-06, Yamaha Mountain Max 700 97-03, Yamaha SX 700R 00-01, Yamaha Venture 700 98-02, Yamaha VMax 700 97-00, Yamaha VMax 700ER 02, Yamaha Mountain Max 600 97-99
